MIG/TIG/STICK Welder | UNIMIG VIPER 185

MIG/TIG/STICK Welder – the UNIMIG VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ 185 does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 185 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.

• 10 AMP Plug
• Gas-shielded & Gasless MIG / Lift Arc DC TIG/ STICK
• Geared Wire Drive
• Spool Gun Ready

SPECIFICATIONS:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 10 Amp
• Rated Input Power (kVa): 7.1
• Ieff (A): 9.8
• Rated Output: 30a/15.5V – 180a/23.0V
• No Load Voltage (V): 62
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.7
• Minimum Generator (kVa): 10.0
• Dinse Connector: 35/50
• Standard: AS/NZ60974-1
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Mig Welding Current Range: 30-180a
• Mig Duty Cycle @ 40°C: 10% @ 180a
• Mig Wire Size Range: 0.6-0.9mm
• Mig Wire Spool Size: 1kg / 5kg
• Drive Roller Size: 30/10
• Tig Function Type: Dc Lift Arc
• Tig Welding Current Range: 10-160a
• Tig Duty Cycle @ 40°C: 10% @ 160a
• Stick Welding Current Range: 10-160a
• Stick Duty Cycle @ 40°C: 10% @ 160a
• Stick Electrode Range: 2.5-4.0mm

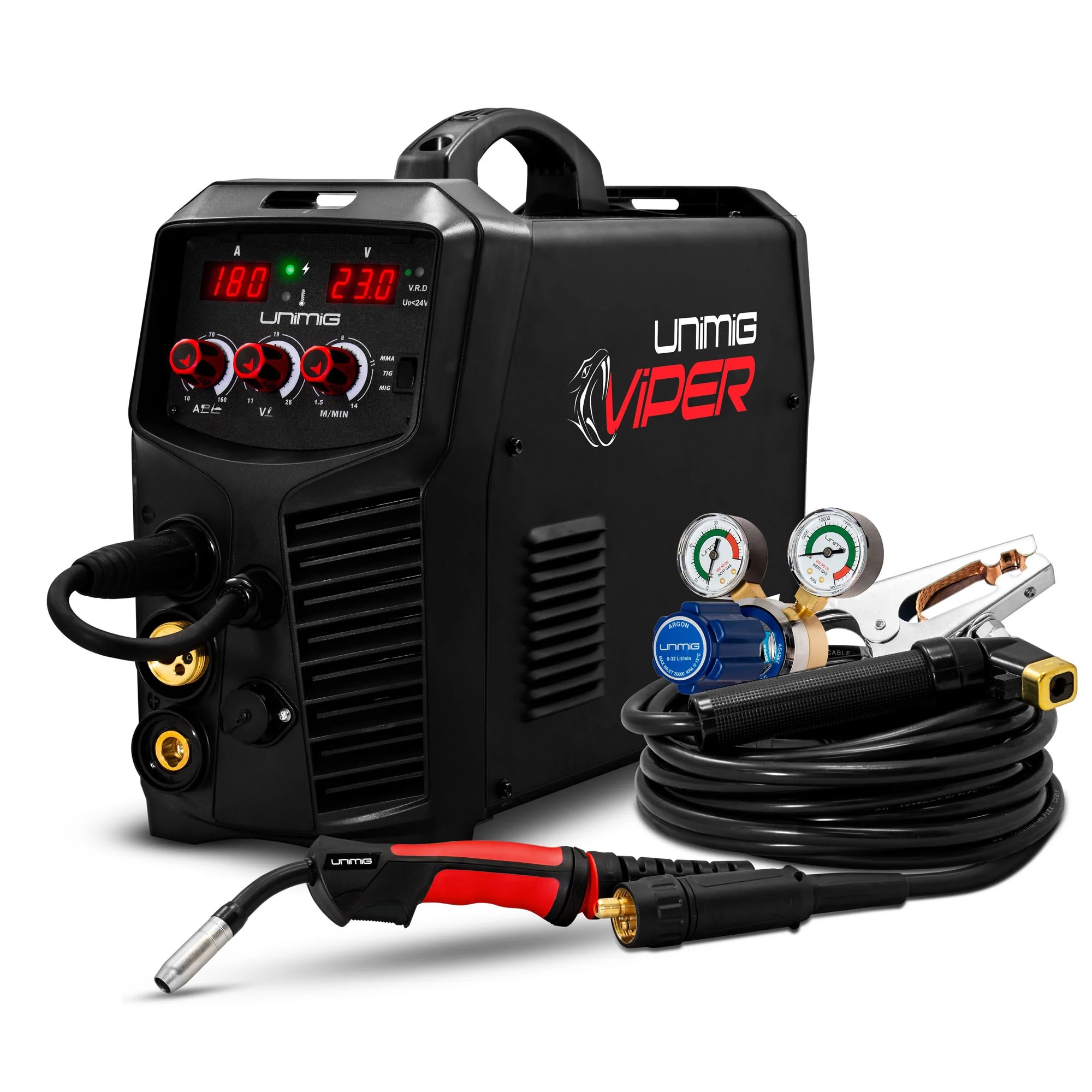

INCLUSIONS:

• 1 x VIPER 185 MIG/TIG/STICK Welder
• 1 x 4m SB15 MIG Torch (including consumables)
• 1 x 4m Twist Lock Electrode Holder
• 1 x 300 Amp Earth Clamp & Lead
• 1 x Twin Gauge Argon Regulator
• 1 x 2m Gas Hose Complete with fittings
• Operating Manual
• 2 Years Warranty Covered By UniMig Australia
